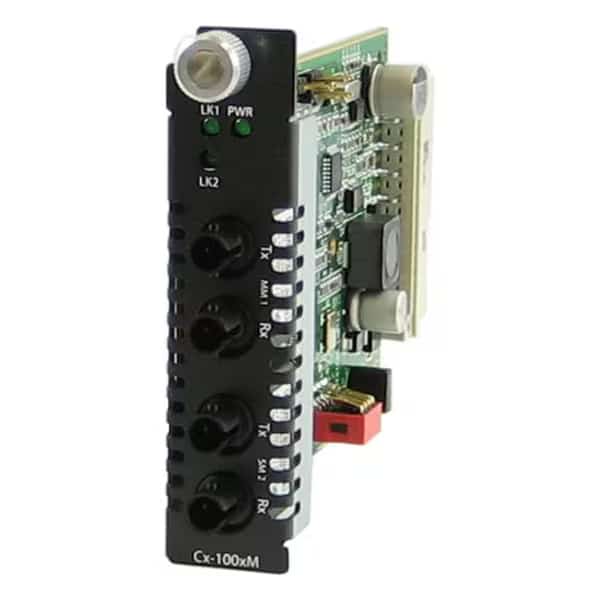

C-100Mm-S2St120 Media Convertr

Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron; Single Mode: 9/125 micron (ITU-T 625)

This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.

minimum range of -25 C to 70 C (-13 F to 158 F)

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

EN55024

The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. Link #2's fiber transmitter is taken off the interface

u003c10-12

This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.

5% to 95% non-condensing

Enabled (Default)- When the state of the receiver is changed on one of the 100Base-X interfaces it is reflected on the other 100Base-X fiber transmitter; If disabled, the 100Base-X fiber interfaces operate independently. Far-End Fault indication on the 100Base-FX fiber interface has no effect on the other interface.

UL 60950-1

11.9

0 C to 50 C (32 F to 122 F)

EN 60825-1:2007

Up to 3,048 meters (10,000 feet)

32 pin DIN 41612 / IEC 60603-2 Type B/2 Male. Fist make, last break for ground and power

3.5

The media converter can perform a loopback on the link #2 fiber interface; Disabled (Default - Up); Enabled- The 100Base-X receiver is looped to the 100Base-X transmitter. Link #1's fiber transmitter is taken off the interface.

FCC Part 15 Class A, EN55022 Class A

5% to 90% non-condensing

Captive thumb screws enable fast insertion and removal. Can be further tighten with a screwdriver.

Canada

1
