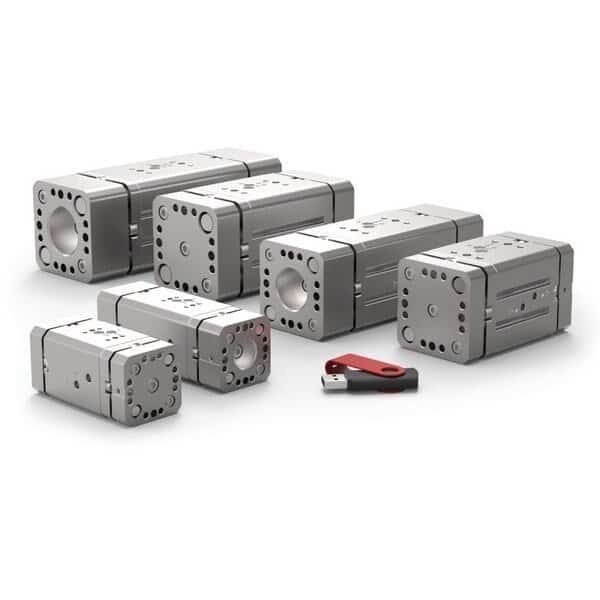

Parallel Gripper, Widebody, Directconnect

Parallel Gripper, Series DPW, Open Width 136 mm, Stroke Length 31.8 mm, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 21.7 psi, Overall Length 37.6 mm, Overall Width 104 mm, Overall Height 37.6 mm, Body Material Aluminum, Finger Material Carbon Steel, Inlet Size M3, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 0.39 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 222 N, IP Rating IP66, Seal Material Buna-N
